Architecture

Architecture#

This section presents the internal design of QML-HCS (Quantum Machine-Learning Hypercausal System), organized from the lowest foundational layers to the highest orchestration layers, and visualized through layered diagrams.

QML-HCS is fully modular. No single execution flow is mandatory. Instead, the system exposes interoperable components that can be assembled into custom pipelines depending on the experiment or backend.

Main Architecture Diagram#

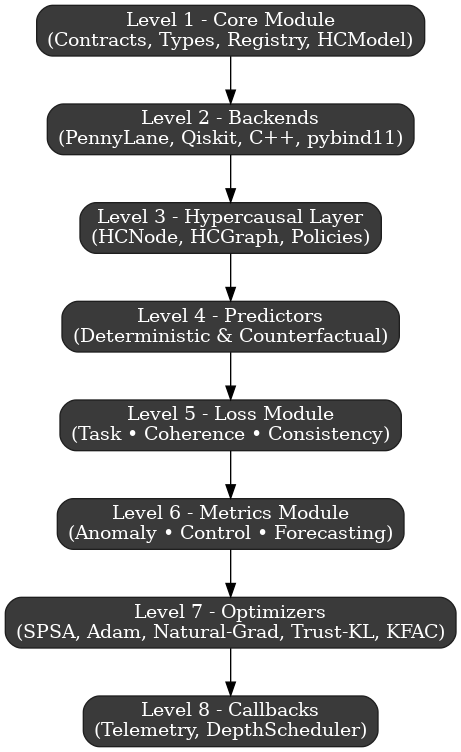

The following diagram shows the entire architecture from bottom (foundations) to top (orchestration):

digraph Architecture { rankdir=TB; node [shape=box, style="filled,rounded", color="#1E1E1E", fillcolor="#3A3A3A", fontcolor="white"]; Core [label="Level 1 - Core Module\n(Contracts, Types, Registry, HCModel)"]; Backends [label="Level 2 - Backends\n(PennyLane, Qiskit, C++, pybind11)"]; HC [label="Level 3 - Hypercausal Layer\n(HCNode, HCGraph, Policies)"]; Predictors [label="Level 4 - Predictors\n(Deterministic & Counterfactual)"]; Loss [label="Level 5 - Loss Module\n(Task • Coherence • Consistency)"]; Metrics [label="Level 6 - Metrics Module\n(Anomaly • Control • Forecasting)"]; Optim [label="Level 7 - Optimizers\n(SPSA, Adam, Natural-Grad, Trust-KL, KFAC)"]; Callbacks [label="Level 8 - Callbacks\n(Telemetry, DepthScheduler)"]; Core -> Backends -> HC -> Predictors -> Loss -> Metrics -> Optim -> Callbacks; }

This is the canonical structural view, not a required flow of execution.

Note

The diagram presents the canonical structural organization of QML-HCS. It is intended as a conceptual layering model rather than an operational pipeline. Component order in this diagram does not imply a mandatory execution sequence; QML-HCS supports modular use and flexible composition.

Level 1 - Core Module (Structural Foundation)#

See also the full Core documentation

The core defines:

  • Typed interfaces for backends, nodes, projection policies

  • Registry system

  • Formal validation

  • HCModel: optional high-level orchestrator

digraph Core { rankdir=LR; node [shape=box, style="rounded,filled", fillcolor="#2E2E2E", fontcolor="white"]; Types [label="Types & Protocols"]; BackendIfc [label="QuantumBackend Interface"]; Registry [label="Backend Registry"]; Model [label="HCModel"]; Types -> BackendIfc -> Registry -> Model; }

Level 2 - Backend Layer (Execution Engines)#

See also the full Backends documentation

Backends provide actual numerical or quantum-based execution.

Supported adapters:

  • PennyLane (analytic/differentiable)

  • Qiskit (shot-based, stochastic)

  • C++ pybind11 backend (deterministic, HPC speed)

digraph Backends { rankdir=LR; node [shape=box, style="rounded,filled", fillcolor="#334455", fontcolor="white"]; PL [label="PennyLane Backend"]; QK [label="Qiskit Backend"]; CPP [label="C++ Backend"]; PL -> QK -> CPP; }

Level 3 - Hypercausal Layer (Logical Evolution Engine)#

See also the full Hypercausal Layer documentation

Defines how states evolve over time and across branches.

Components:

  • HCNode (input → state → futures → representative)

  • HCGraph (causal connections)

  • Projection policies

digraph HC { rankdir=LR; node [shape=box, style="rounded,filled", fillcolor="#556677", fontcolor="white"]; HCNode [label="HCNode"]; HCGraph [label="HCGraph"]; Policy [label="Projection Policies"]; HCNode -> HCGraph; HCGraph -> Policy; }

Level 4 - Predictors (Deterministic & Counterfactual)#

See also the full Predictors documentation

Predictors extend computation with:

  • LinearProjector

  • Counterfactual anticipators

  • Mirrored perturbations

digraph Predictors { rankdir=LR; node [shape=box, style="rounded,filled", fillcolor="#774444", fontcolor="white"]; Proj [label="LinearProjector"]; CF [label="Counterfactual Anticipator"]; Pert [label="Perturbations"]; Proj -> CF -> Pert; }

Level 5 - Loss Evaluation Layer#

See also the full Loss Module documentation

Measures:

  • Task accuracy

  • Inter-branch coherence

  • Triadic temporal consistency

digraph Loss { rankdir=LR; node [shape=box, style="rounded,filled", fillcolor="#664466", fontcolor="white"]; Task [label="Task Losses"]; Coh [label="Coherence"]; Cons [label="Consistency"]; Task -> Coh -> Cons; }

Level 6 - Metrics (Advanced Temporal & Statistical Analysis)#

See also the full Metrics Module documentation

Provides higher-order diagnostics:

  • anomaly detection

  • control stability

  • forecasting alignment

digraph Metrics { rankdir=LR; node [shape=box, style="rounded,filled", fillcolor="#334433", fontcolor="white"]; Anom [label="Anomaly Metrics"]; Ctrl [label="Control Metrics"]; Fcast[label="Forecast Metrics"]; Anom -> Ctrl -> Fcast; }

Level 7 - Optimization Module#

See also the full Optimization documentation

Algorithms:

  • finite-diff

  • SPSA

  • Adam

  • Natural-Grad

  • Trust-KL

  • Dual-Ascent

  • MPC

  • KFAC

digraph Optim { rankdir=LR; node [shape=box, style="rounded,filled", fillcolor="#444444", fontcolor="white"]; GD [label="Finite-Diff"]; SPSA [label="SPSA"]; Adam [label="Adam"]; NG [label="Natural Grad"]; KL [label="Trust-KL"]; KFAC [label="KFAC"]; GD -> SPSA -> Adam -> NG -> KL -> KFAC; }

Level 8 - Callbacks Layer#

See also the full Callbacks documentation

Provides live monitoring and state adaptation.

  • TelemetryLogger

  • MemoryLogger

  • DepthScheduler

digraph Callbacks { rankdir=LR; node [shape=box, style="rounded,filled", fillcolor="#555555", fontcolor="white"]; TL [label="TelemetryLogger"]; ML [label="MemoryLogger"]; DS [label="DepthScheduler"]; TL -> ML -> DS; }

Optional Execution Flows (Not Mandatory)#

QML-HCS allows multiple flows; these are optional examples.

Hypercausal Flow Example

digraph FlowHC { rankdir=LR; node [shape=oval, style="filled", fillcolor="#335577", fontcolor="white"]; X [label="Input"]; S [label="State"]; K [label="Future Branches"]; R [label="Representative"]; X -> S -> K -> R; }

Predictor/Counterfactual Flow Example

digraph FlowCF { rankdir=LR; node [shape=oval, style="filled", fillcolor="#773333", fontcolor="white"]; St [label="State"]; LP [label="LinearProjector"]; CF [label="Counterfactuals"]; Ev [label="Evaluation"]; St -> LP -> CF -> Ev; }

Optimization Loop Example

digraph FlowOptim { rankdir=LR; node [shape=oval, style="filled", fillcolor="#555555", fontcolor="white"]; P [label="Params"]; M [label="Model"]; L [label="Loss/Metrics"]; O [label="Optimizer Step"]; P -> M -> L -> O -> P; }

Summary#

QML-HCS is structured according to increasing abstraction:

  1. Core Module - structural base

  2. Backends - execution engines

  3. Hypercausal Layer - logical evolution framework

  4. Predictors - deterministic & counterfactual expansion

  5. Loss Layer - coherence and task evaluation

  6. Metrics - statistical and temporal interpretation

  7. Optimization - adaptation and learning

  8. Callbacks - runtime monitoring and control

The diagrams above reflect modular organization, not a required pipeline. Users may assemble custom computation flows depending on their needs.
